Safety Glass

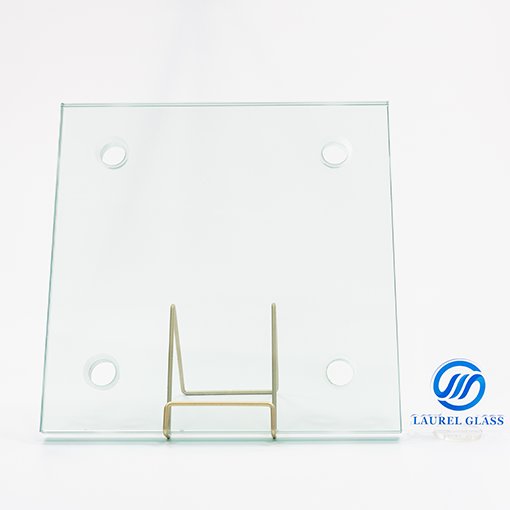

Tempered Laminated Glass

Tempered laminated glass combines the strength and durability of tempered glass with the safety and protective properties of laminated glass. The manufacturing process of this multi-layered glass involves bonding two or more layers of flat glass together with an interlayer (typically PVB or SGP), followed by tempering the entire structure to enhance its strength. Tempered Laminated Glass is an ideal choice for applications requiring high safety, impact resistance, and UV protection, such as automotive windshields, building windows, glass curtain walls, and skylights.


  • Thickness of Glass: 3-19mm

  • Thickness of Interlayer:0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.9mm, 2.28mm, 3.04mm, 3.8mm.

  • Size: Max. Size: 13,000mm * 3,300mm.

  • Customized services are available.


INQUIRE NOW

Products Detail

Tempered laminated glass is a high-performance safety glass that combines strength, safety, and durability. Its manufacturing process involves bonding glass with one or more interlayers (such as PVB or SGP), followed by tempering the entire structure. This process can greatly increase the strength of the glass.


The laminated structure ensures the safety of tempered laminated glass. Even if the glass breaks, the fragments remain firmly attached to the interlayer, preventing the risk of personal injury from flying glass shards. In addition, the tempering process further enhances the glass's impact resistance, thermal stress resistance, and crack resistance.


Tempered laminated glass has become an ideal glass solution for applications that require both extremely high safety standards and excellent visual transparency. This type of glass is widely used in automotive manufacturing, construction projects, and commercial facilities, offering superior protective performance, noise reduction, and UV filtration.


Products Features

  • Enhanced Safety: The combination of tempered glass and a laminated interlayer makes this glass highly resistant to shattering. If broken, the shards stay attached to the interlayer, significantly reducing the risk of injury.

  • Superior Strength: The tempering process increases the glass's strength, making it up to five times stronger than standard glass, and allowing it to withstand impacts, high pressures, and extreme temperatures without breaking easily.

  • Impact Resistance: The laminated structure offers high impact resistance, making it ideal for areas subject to high levels of stress or impact, such as in automotive windshields, storefronts, and facades.

  • UV Protection: The interlayer in laminated glass blocks harmful UV radiation, protecting interior spaces from UV damage and reducing fading of furniture, flooring, and other materials.


Product Specification

Thickness

3+3mm, 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, 15+15mm, etc.

Also support triple and four-layer in special projects.

SizeMinimum Size: 300*150mm, Maximum Size: 3300*13000mm
Interlayer thickness0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.9mm, 2.28mm, 3.04mm, 3.8mm
Typy of InterlayerPVB, SGP
Type of Glass ColorClear, Ultra Clear, Bronze, Blue, Green, Grey.


Product Application

Interior Design
Interior Design
Glass Balustrade
Glass Balustrade
Glass Door
Glass Door
Glass Stairecase
Glass Stairecase
Glass Skylight
Glass Skylight
